Fig.1
William Dobson 1611−1646
Portrait of an Officer c.1645
Oil paint on canvas
1033 x 775 mm
N04619
This painting is in oil paint on canvas measuring 1033 x 775 mm (fig.1). The support is made from two pieces of plain woven linen joined together at a horizontal seam just below the sitter’s sash, approximately 160 mm above the lower edge (fig.2). The larger piece, with 9 vertical and 11 horizontal threads per square centimetre, is coarser than the smaller, which has 14 vertical and 13 horizontal threads. The absence of any disruption in the ground as it passes over the seam in the X-radiograph suggests that the join was present from the inception of this painting. Faint indications of cusping on the upright edges suggest that originally the painting may have been wider – perhaps as much as 100 mm.1 The absence of cusping at the top and bottom edges may mean that more canvas was removed from there at some point in the past. The original stretcher is not extant and there are no bar marks in the picture to indicate its construction.
Fig.2
X-radiograph of Portrait of an Officer
The ground on both pieces is light beige colour. It looks very chalky in cross-section (figs.3–4). It was applied by being scraped hard into the canvas weave, just skimming the tops of the threads. Its brittle nature has led to extensive, small, oval-shaped losses of ground on the canvas tops all over the painting, worst in the dark areas (fig.5). The ground contains marine chalk, gypsum, lead white, yellow ochre or sienna, glassy particles, Cologne earth and black, bound together in non-heat bodied linseed or walnut oil.2

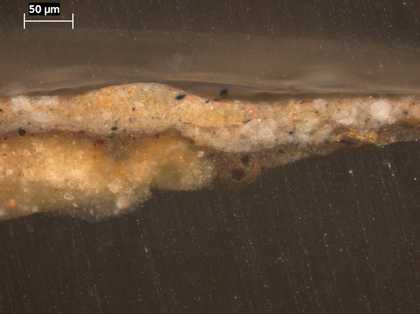

Fig.3
Cross-section through the stone ledge in the lower central foreground, photographed at x320 magnification. From the bottom: beige ground; opaque brown underpaint; two shades of stone coloured paint, the first light and cool, the second darker and warmer, brushed into each other wet-in-wet; varnish

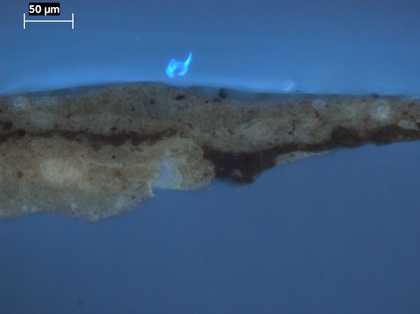

Fig.4
The same cross-section viewed in ultraviolet light

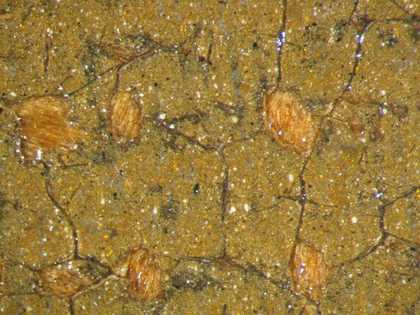

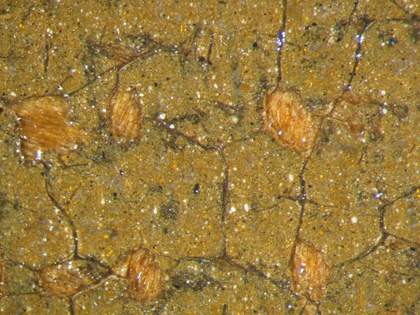

Fig.5
Detail at x10 magnification of the buff jerkin. It shows the losses of paint and ground from the tops of the canvas threads and the dark underpainting beneath the buff coloured paint
Infrared reflectography reveals a few sketchy lines in what might be black crayon in his right shoulder and further, more elaborate fine lines describe ornamentation in the helmet (fig.6).
Fig.6
Infrared reflectograph of the head and the helmet
There is substantial, fully modelled dead colouring beneath the whole composition, as follows: opaque brown beneath the mustard yellow background; shades of opaque beige and brown beneath the buff coat; opaque, dark flesh-tones beneath the pink, scumbled paint of his right hand (fig.7); lilac-grey beneath linen (fig.8); dark grey beneath the white highlights of the breastplate (fig.9).

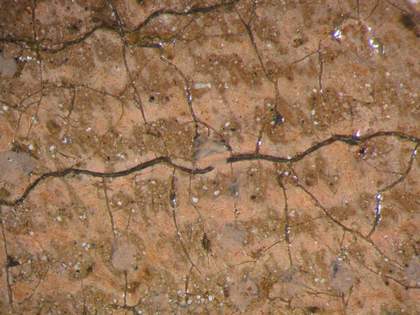

Fig.7
Detail at x20 magnification of the opaque, dark flesh-tones beneath the pink, scumbled paint of his right hand. The small, light coloured dots are modern retouching to disguise tiny losses in the original.

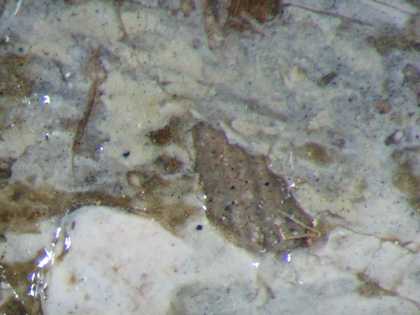

Fig.8
Detail at x35 magnification of cool, lilac coloured underpaint beneath the white linen shirt

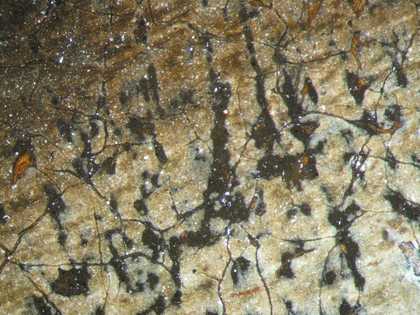

Fig.9
Detail at x12.5 magnification of dark grey underpaint beneath the white highlights of the breastplate
There appears to be an alteration in the lower right foreground: opaque thick yellow and white paint can be seen under magnification beneath the stone colour of the ledge. The handle of the pistol was altered at an early stage of painting (fig.10).
Fig.10
Infrared reflectogram showing the alteration in the position of the pistol
Fig.11
Detail of the head and shoulders
For the final painting Dobson mixed opaque colours on his palette and worked them wet-in-wet on the dry underpainting, adding detail and glazes on top later. His brushwork was rapid and expressive (fig.11). The taffeta sash was laid in with an opaque, light coloured brick red, after which a lighter mixture containing white or yellow was added wet-in-wet for the highlights. Then a cooler brown was added to the shadows of the folds.

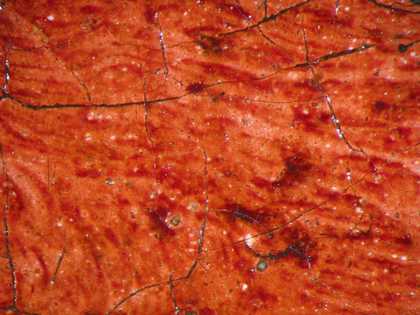

Fig.12
Detail at x20 magnification of the translucent red glaze that remains in the troughs of the brushwork in the red sash

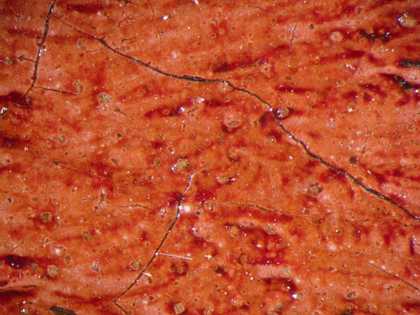

Fig.13
Detail at x20 magnification of lead soap aggregates in the opaque red paint of the sash and traces of the translucent red gaze that would once have enriched the whole area
Finally the entire area was glazed with a red lake, which has survived only in the troughs of the paint film (fig.12). The brick red and light red colours contain lead soap aggregates at the surface (fig.13) but these are not visible in the shadows.3

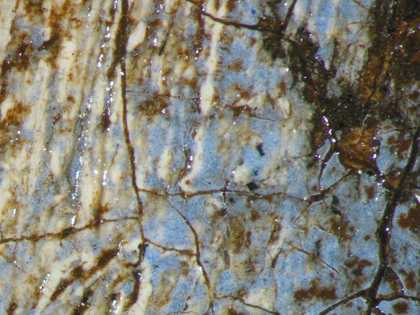

Fig.14
Detail at x20 magnification of ultramarine blue mixed into the white highlight of the helmet
The flesh tones were mixed on the palette from lead white with opaque reds (vermilion and a variety of ochres, some purplish in tone), large agglomerates of yellow ochre and large quantities of black. The bluish white highlights of the metallic helmet and breastplate were mixed from ultramarine, black and white (fig.14), in contrast to the white linen, where lead white with black was used instead. The sky is lead white with smalt, and the darker, greener area that was applied on top of it was mixed from blue verditer, black, lead white, yellow ochre and smalt. For the dark, mustard yellow background he made mixtures of lead white, yellow ochre, umber, smalt, black, gypsum, Cologne earth and indigo.
The smalt mixtures in the sky have discoloured from blue to a yellowish tone. In 1973 the painting was cleaned at the Tate, revealing the helmet that had been hidden beneath overpaint. An old, double, glue lining was removed and replaced with a wax-resin lining. The varnish is the modern synthetic resin, Paraloid B-72.
July 2005
